Product Description

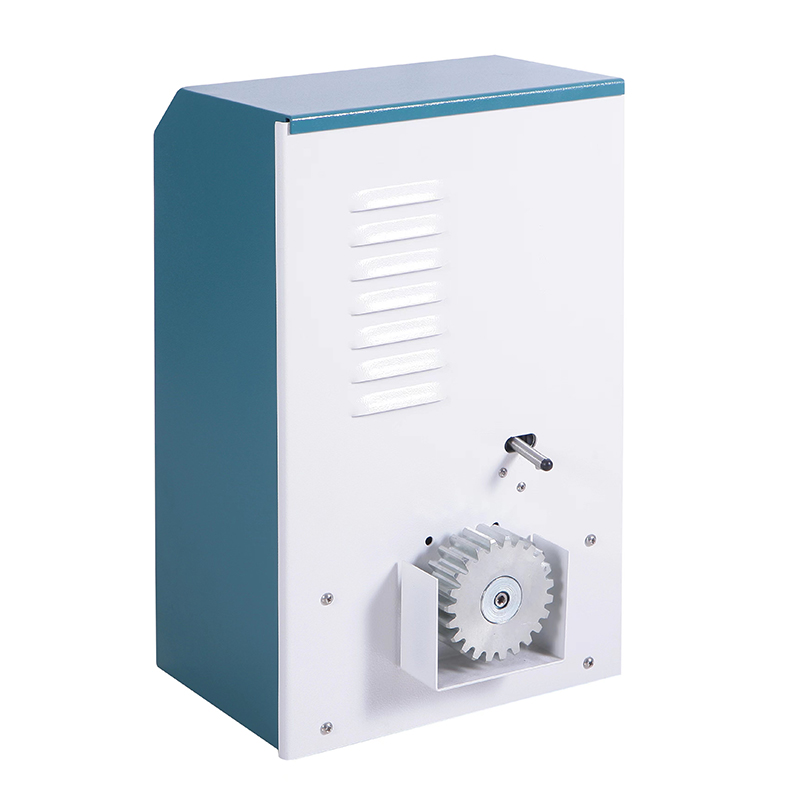

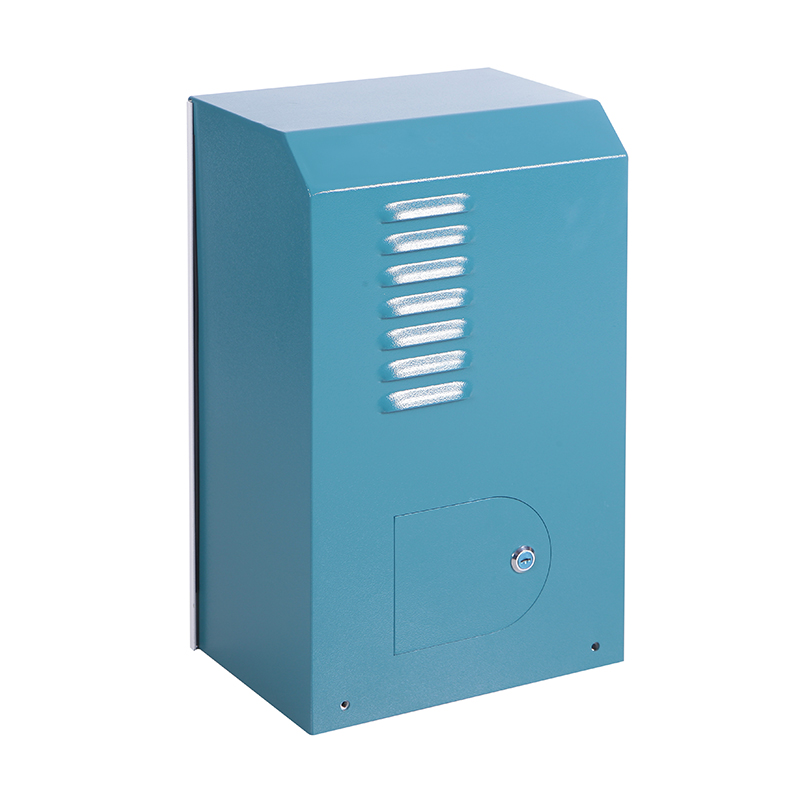

QN-3000 is the new Sliding gate opener.The open door weighs up to 3000 kilograms,Its innovative gear motor,which meets international standards,can Responding to the most complex security requirements.
Product Feature

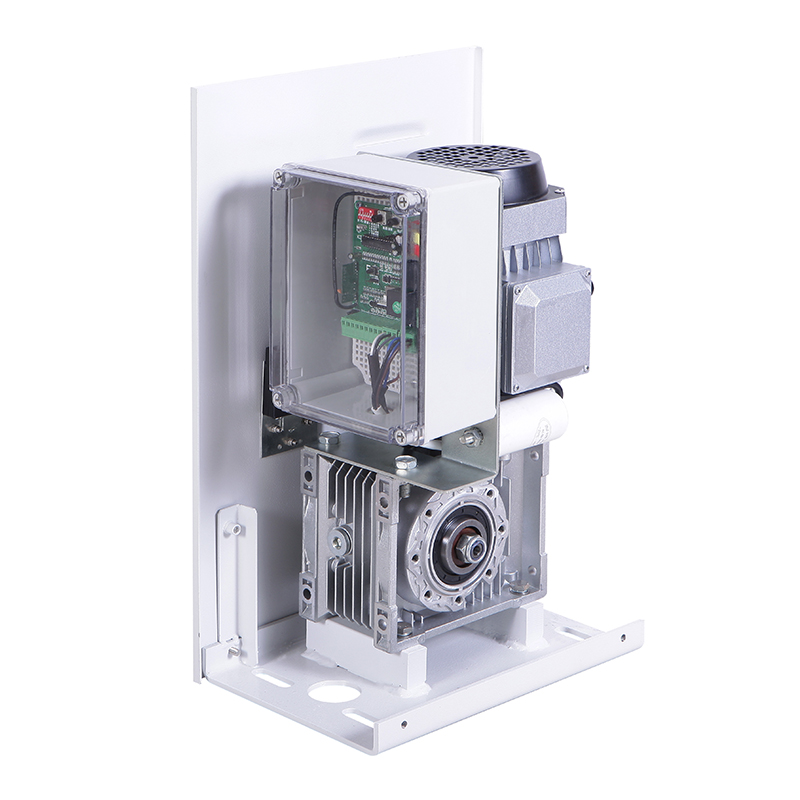

Turbo worm transmission mechanism,transmission stability.
Gear with end cover protection, more secure and reliable.
It could work continuously for 3-4 hours.
Convenient installation, when power failure can open the clutch, manual opening.
| Item No | QN-3000 | QN-3500F |
| Input Voltage | 220V/50Hz | 380V/50Hz |
| Motor speed | 1400r/min | 1400r/min |
| Output torque | 170N.m | 180N.m |
| Motor power | 1000W | 1100W |
| Max gate weight | 3000kg | 3500kg |
| Gate speed | 11m/min | 11m/min |
| Limit switch | Spring/Magnetic NO/NC | Spring/Magnetic NO/NC |
| Temperature | -45°C~+65°C | -45°C~+65°C |
| Noise | <58dB | <58dB |
| Gear teeth | 23T | 23T |
| Size(mm) | 496(H)x309(L)x258(W) | 496(H)x309(L)x258(W) |
