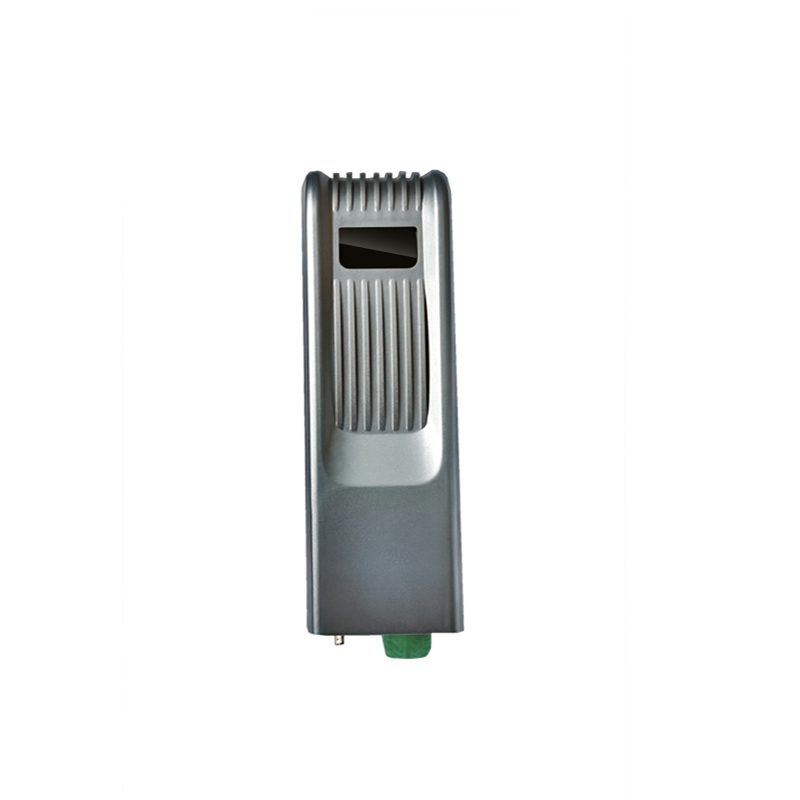

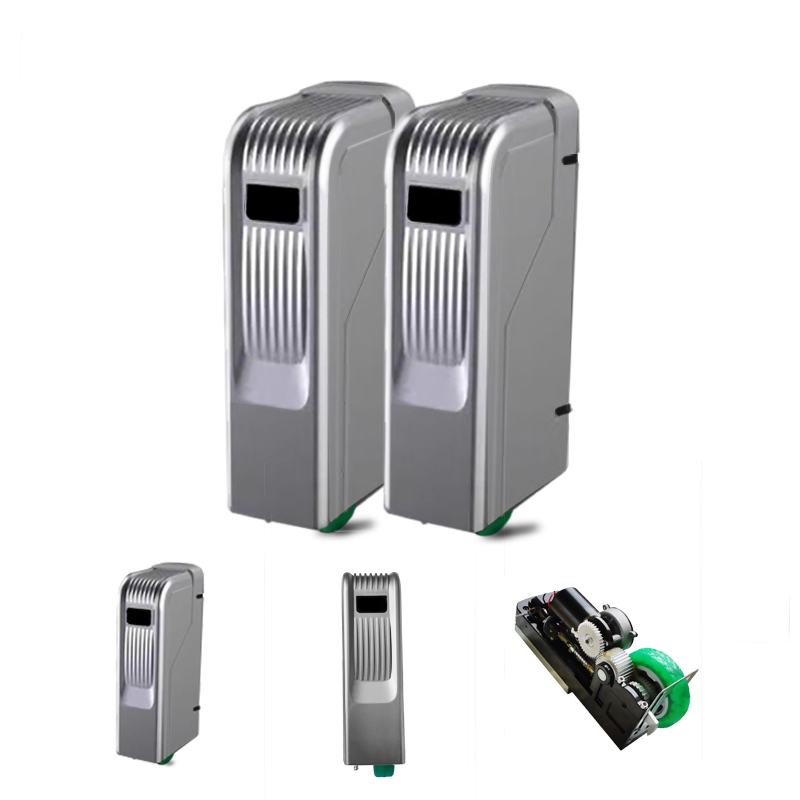

QN-SH90 Ground Wheel Rolling Automatic Swing Gate Opener

The Ground Wheel Rolling Swing Gate Opener is suitable for a range of applications, including residential properties, commercial establishments, and industrial facilities where a reliable and adaptable gate automation solution is essential.

Features

1.Reasonable force: the door operator is installed on the side away from the door hinge, and the driving force acts directly in the direction of door opening and closing, using 24V DC voltage; safe, power-saving, and efficient.

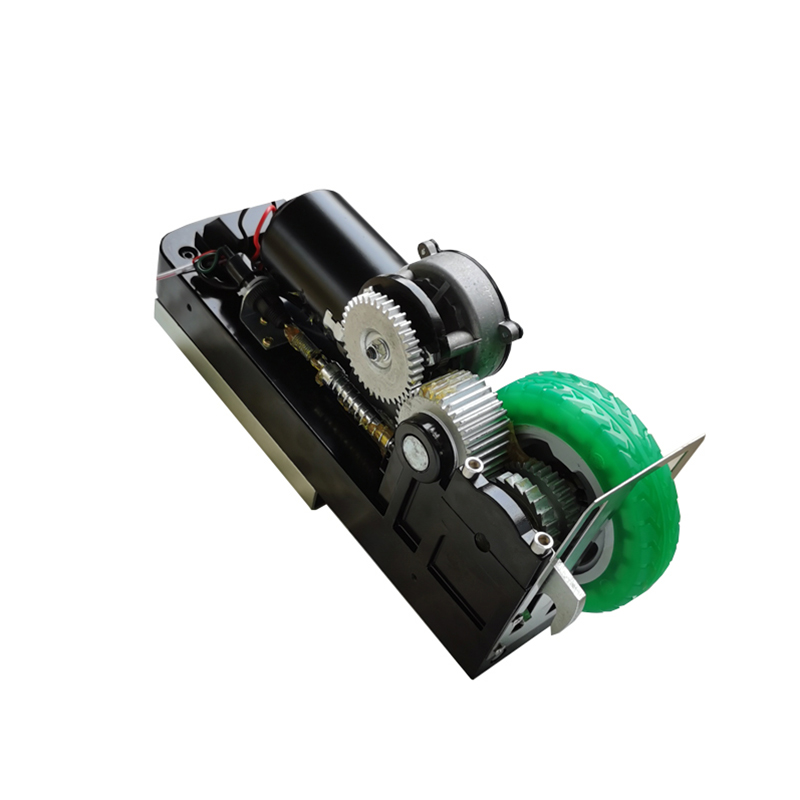

2.Unique chute mechanism: When the ground is uneven, it can automatically and elastically rise and fall, adapting to slightly undulating roads (adapability is 0-90mm) without having to bury tracks; (Specially mentioned when ordering over height, adaptability can be 300mm)

3.Large opening angle: the door can be opened to any angle without being restricted by the door itself. (0~360 degrees)

4.Automatic locking device: The automatic locking mechanism of the door operator is a patented technology developed by our company. The newly designed dimensional clutch structure realizes the integration of driving and locking functions. The automatic locking when the door is closed is safe, reliable and anti-theft, without the need for an additional electric lock.

5.Manual function: In case of power outage, the special key can be used to easily convert to manual operation. It can also be switched to backup power or solar power. (optional accessories)

6.Manual function: It is not affected by the door pillars and original structure. It can be installed on any new or old gate without damaging the original door body and door pillar structure.

7.Automatic closing function: automatically close the door within the set time after opening the door;

8.Start slowly and stop slowly;

9.Stop when opening the door and retreat when closing the door;

After power failure, the clutch can be disengaged to realize manual door opening;

Can be connected to external security equipment such as police lights and infrared devices;

Can be connected to an external access control system to achieve automatic identification and access control;

Optional storage battery or solar panel as backup power supply
